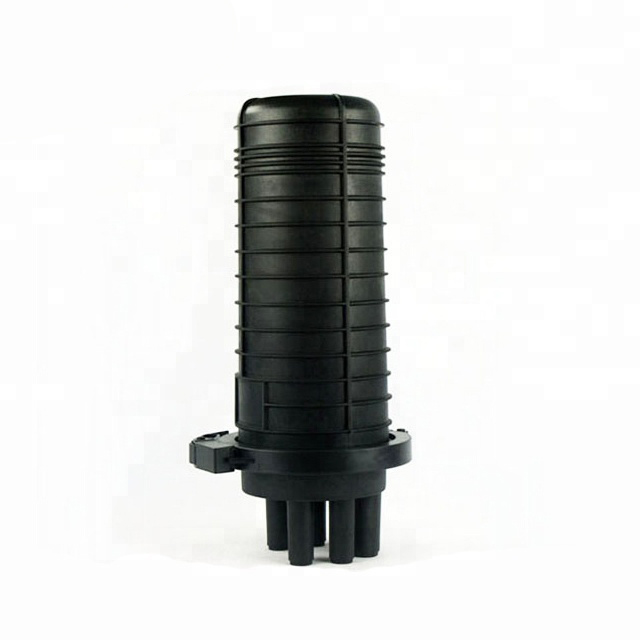

SPLICE CLOSURE
MODEL NO.: LYDT001


Features:
• The sealing device of the closure adopts self-impacted hoop. The closure will be sealed perfectly while
  the hoop fastened.
• It solves the universal problem, could be used for different sizes of cables; and could be used for both
  single core and ribbon fibers; apply to pole-mounting, aerial, and direct buried applications.
• Adequate space for storage of fibers is enough for coiling of spare fibers
• There is fixing and storage device for spare fibers at the rear side.
• Adopt high grade imported material to ensure long lifetime.

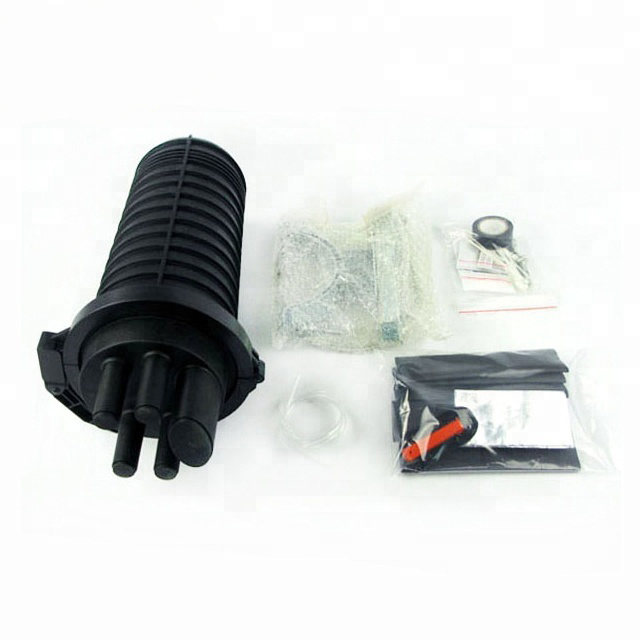

Standard accessories:
LYDT001 box 1 set, sealing gasket 1set, splice tray 1 set, cable fixing device 1 set, pole-mounting hoop 1 set, splice protective sleeve, nylon tie 12 pieces, sand paper, silver paper, insulating tape 1 roll

Optional accessories:
Grounding device 1 set, valve 1 set, aerial mounting hoop 1 set,heat shrink sleeve(Φ65) 1 piece,heat shrink sleeve(Φ30) 4  pieces,slit clip 1 piece, grounding wire for armor layer 6 pieces, protective tube

Structure, Dimension and Weight:

Type	Fibers/Tray	Max capacity(F)	uitable Dia of cable(mm)S	Sealing structure	Weight/unit (Kg)	Size of CTN
LYDT 001	24	144	Small port:Φ8～Φ17.5 Big port:Φ10～Φ17.5	3.8～4.2	Dome type heat shrink sealing	740X490X450 (6 pieces)
