SPLICE CLOSURE
MODEL NO.: LYDT002


LYDT002  Optic Fiber Splice Closures can be used in outside plant, underground, aerial, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from -40 to 65℃.

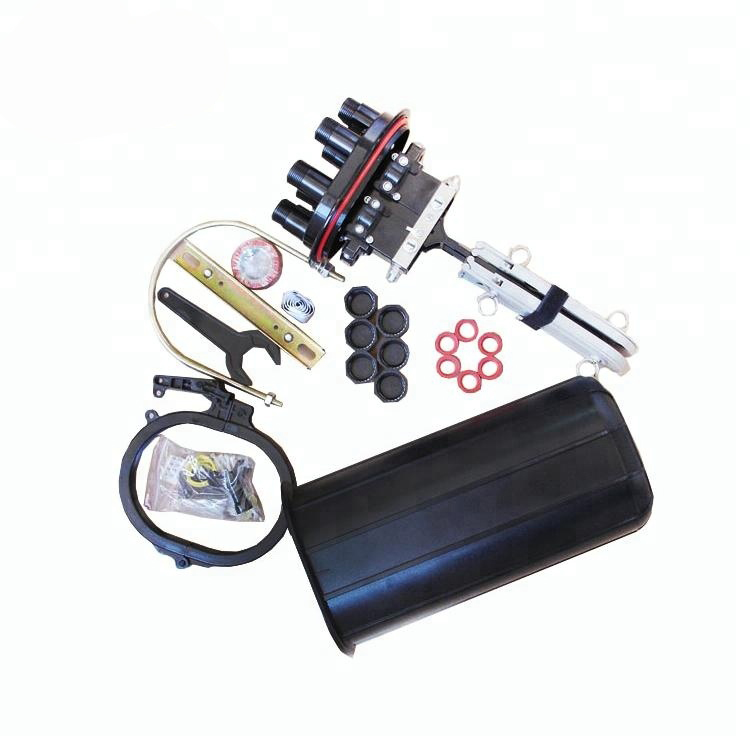

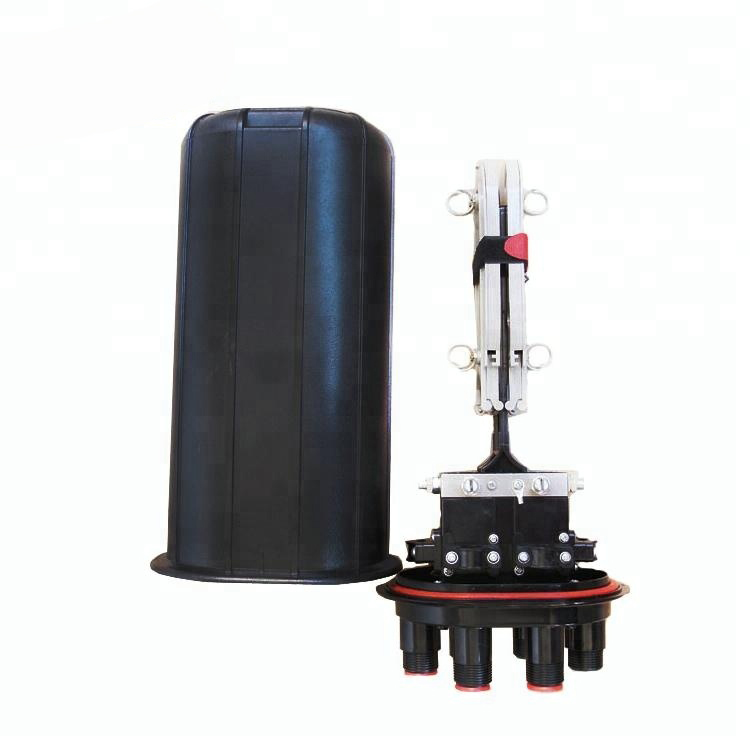

Main components:

No.	Name of components	Quantity	Usage	Remarks
1	FOSC cover	1 piece	Protecting fiber cable splices in whole	Height x Diameter 350mm x 220mm
2	Fiber optic splice tray (FOST)	Max. 10 trays ( bunchy) Max. 8trays (ribbon )	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy: 12, 24 (cores) Ribbon: 6 (pieces)
3	Base	1set	Fixing internal and external structure
4	Plastic hoop	1 set	Fixing between FOSC cover and base
5	Gasket ring	1 set	Big gasket ring is used to seal FOSC cover and base. Small gasket ring is used to seal inlet/outlet tube	1 piece of big gasket ring, 6 pieces of small gasket ring
6	Pressure testing valve	1 set	After inject air, it is used for  pressure testing and sealing testing	Configuration as per requirement
7	Earthing deriving device	1 set	Deriving metallic parts of fiber cables in FOSC for earthing connection	Configuration as per requirement


Dimension and capacity:

Outside dimension (HxD)	455xФ220 (mm)
Weight (excluding outside box)	3.8-4.5 (kgs)

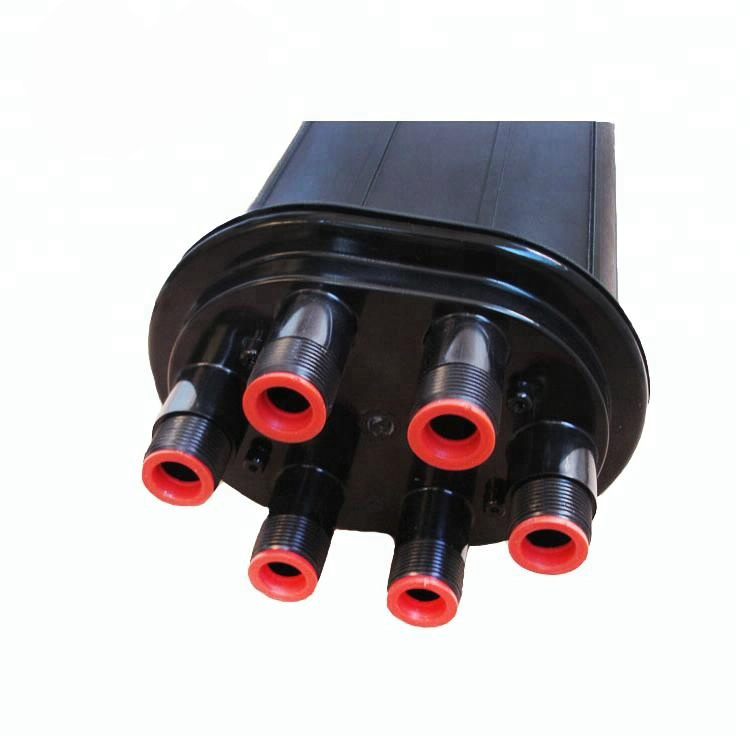

Number of inlet/outlet ports	6 pieces
Diameter of fiber cable	Φ8—Φ21 (mm)
Capacity of FOSC	Bunchy: 12—240 (Cores)
