SPLICE CLOSURE
MODEL NO.: LYDT003

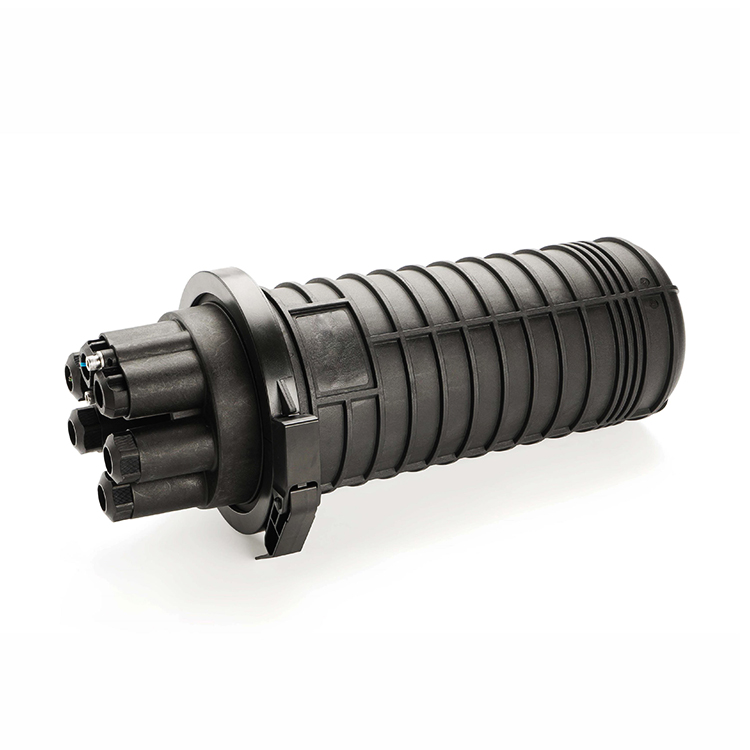

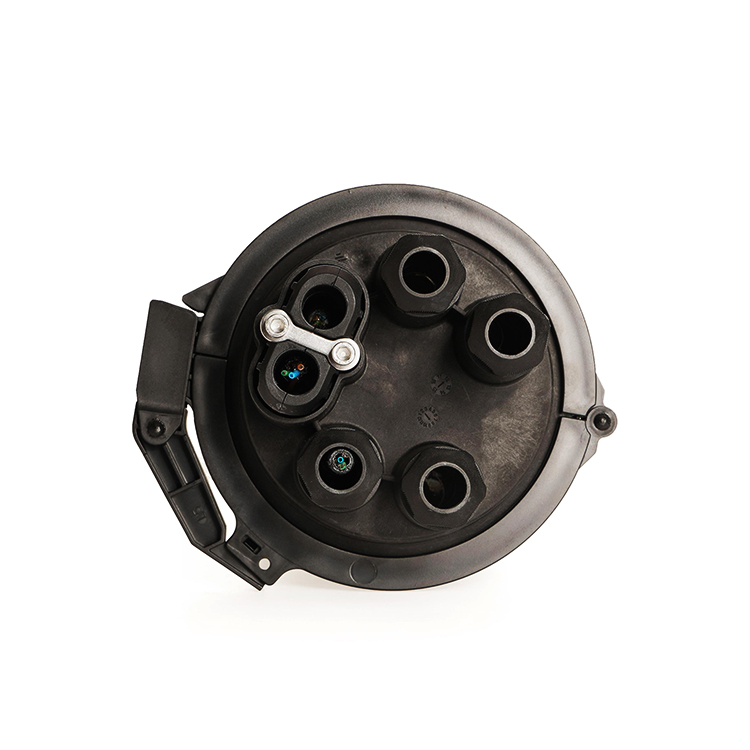

LYDT003 type of Fiber Optic Splice Closure (FOSC) is a member in dome series of optical fiber cable splice closures. This model has four small circular cable entry ports plus one big circular port for express (looped) cable.  The sealing component is made from silicon. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop.  This model is suitable for different methods of branch connection, including branching and splicing of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground applications. This model is excellent in sealing performance, easy for installation, wide applications and is prior choice of fiber connection equipmen

Main components:

Number	Part No	Name & description	Quantity	Usage	Remark
1	LYDT003-B-01	Splice Closure Cover	1	Protect Closure	H=350mm D=175mm
2	LYDT003-BJ-10	Fiber splice tray	2sets	Protect Fiber	Fiber splice & storage;
3	LYDT003-01NEW	Splice Closure Base	1pcs	Fixing inner components
4	LYDT003-B-08	Circular seal gasket	1pc	Airproof & Waterproof
5	LYDT003-05-0	Plastic hoop	1set	Fixing dome cover and base
6	LYDT003-13	Splice tray bracket	1pcs	For holding splice tray
7	GW-0	Earthing device	1set	For inner metal components grounding	Optional
8	TR414	Air Valve	1pcs	Testing that air pressure and seal performance	Optional

Specification:

External Dimension (mm)	450×φ230	Max. Capacity	144F/ 72F
Weight（kg）	4.2～4.8	Sealing type	Mechanical
Cable Entrances	5 (4 Drop & 1 Express cable)	Capacity per Tray	24F/12F
Suitable cable diameter (mm)	Pinholeф5～ф7 express cableф10～ф17.5
number of Splice trays	6	IP rate	68
Material for body	PP+GF	Material for splice tray	ABS
