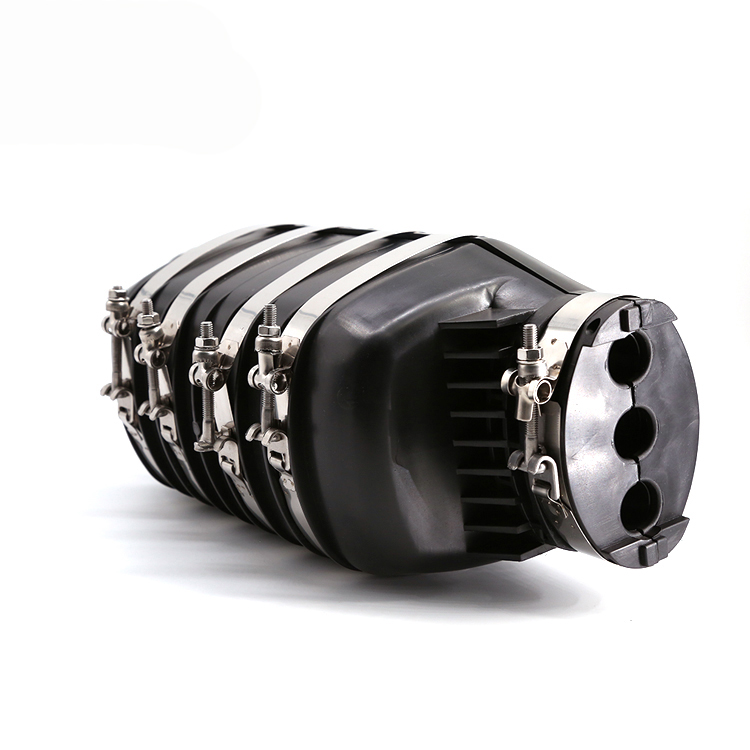

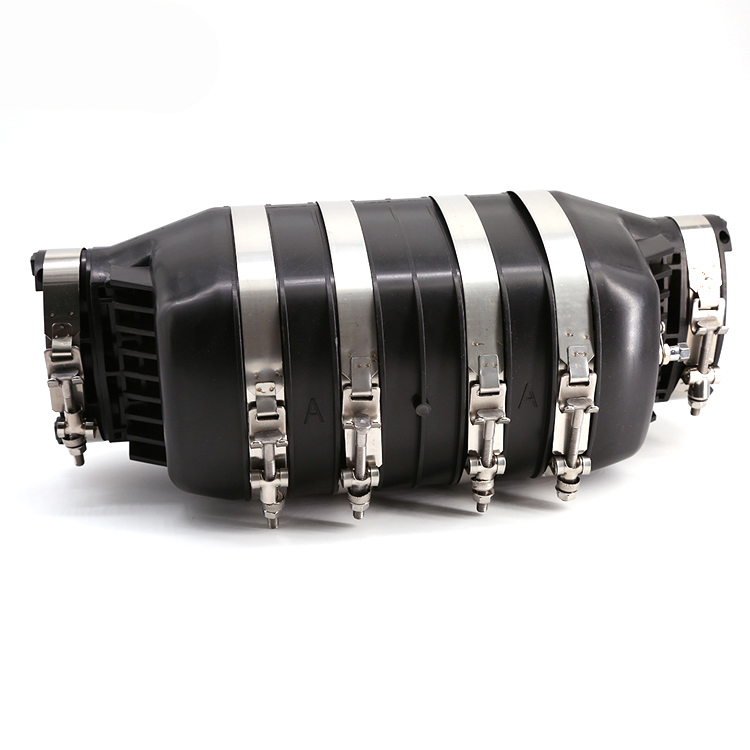

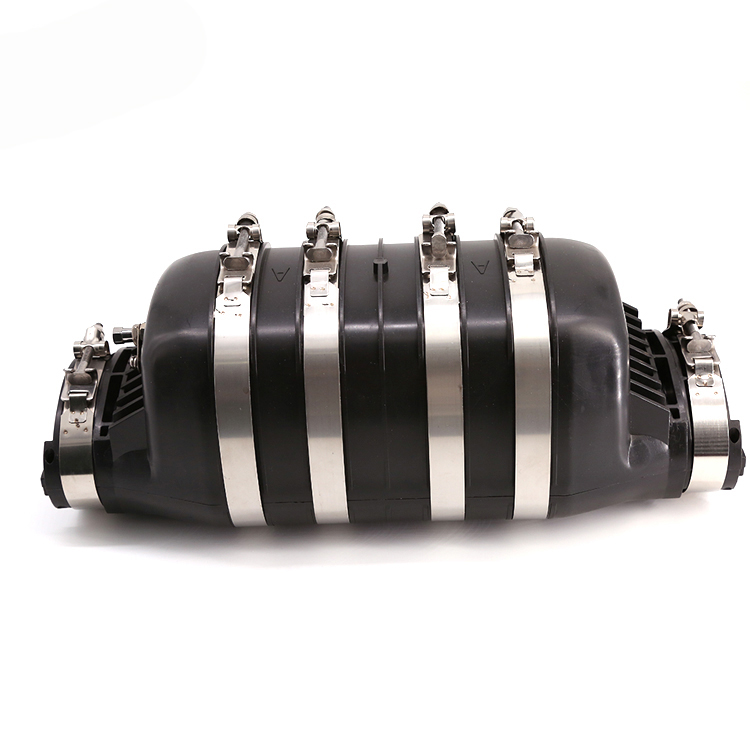

Fiber Optical Splice Closure
MODELNO.:LYILT001


LYILT001 Optic Fiber Splice Closures has beautiful appearance and high performance. It can be used in outside plant, underground, aerial, pedestal and direct buried applications. The device has three entries and three exits, and allows for direct jointing and bifurcated jointing. It is tested under real-world conditions, that stands up to even the most severe conditions of moisture, vibration and extreme temperatures.

Features
Reasonable structure design and constructed of a high performance.
Chemical-resistant raw material, PP+GF20%.
Reliable optical and resist electric performance.
Innovative waterproof elastic entire sealing.
Unique strength member clamp assembly.
Several sizes with interchangeable parts.
Multiple cable entry options ，No special tools required  Varying cable port sizes.

Benefits
Use in outside plant, underground, aerial, pedestal and direct buried applications
Prevents cable sheath movement with temperature changes
Expandable system to fit capacity and space requirements
No compound required; easy installation and reentry; easy reentry and reusable seal
Accommodates all common trunk, feeder cable sizes, and many types of splices
Eliminates splice rebuilding when adding lines
Provides flexibility in fiber management and easy to maintain
Meets fire codes and industry standards
Protects fiber optic splices from the elements while providing fast and easy no-cost reentry.
Provides ability to flash test

Specification

Type	Appearance size L×W×H (mm)	Fibers/Tray (core)	Cable Capacity(port)	splice capacity (fibers)	Suitable Dia of cable(mm)	Weight/Unit (kg)
LYILT001	405×158×145	12	3 entry 3 exit	12-96	Φ10~Φ25	3.5~3.8
