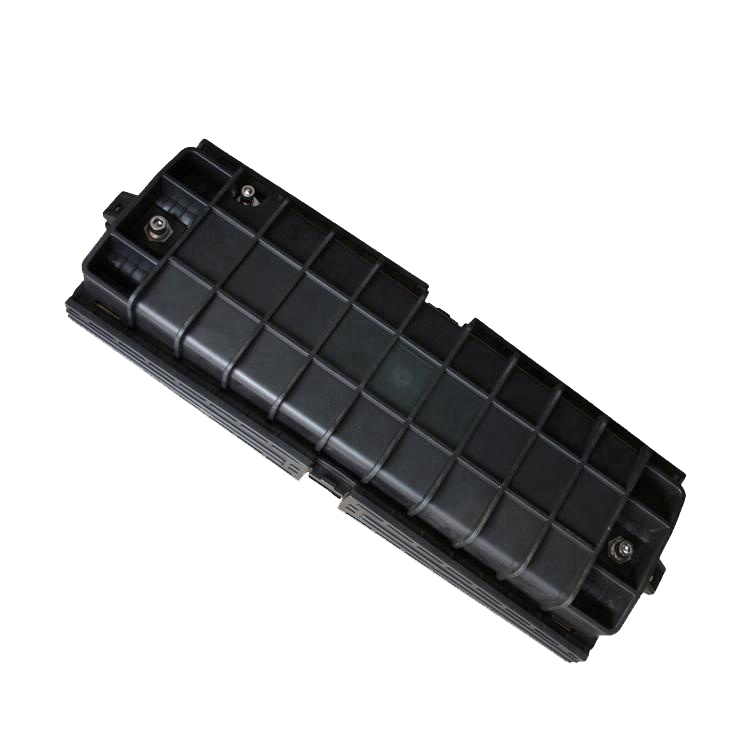

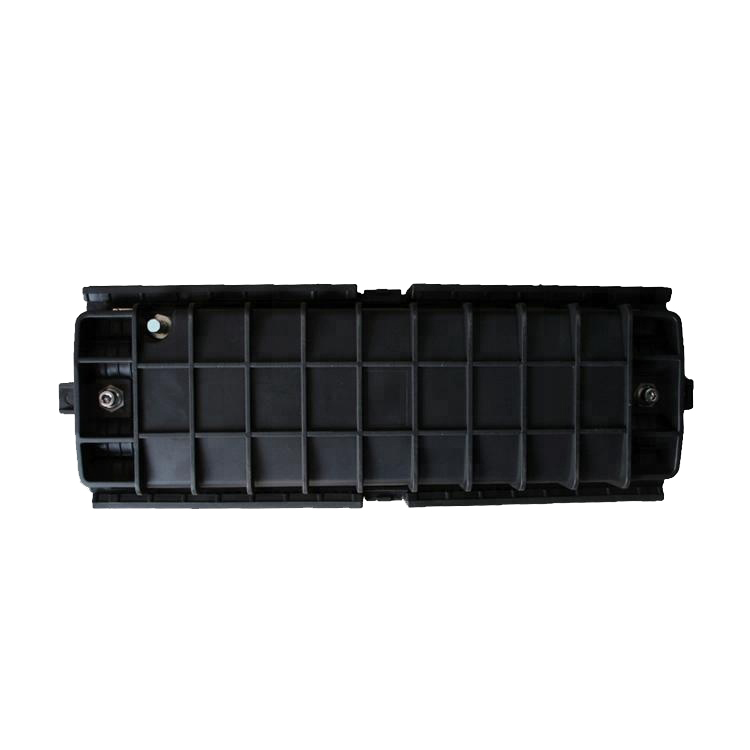

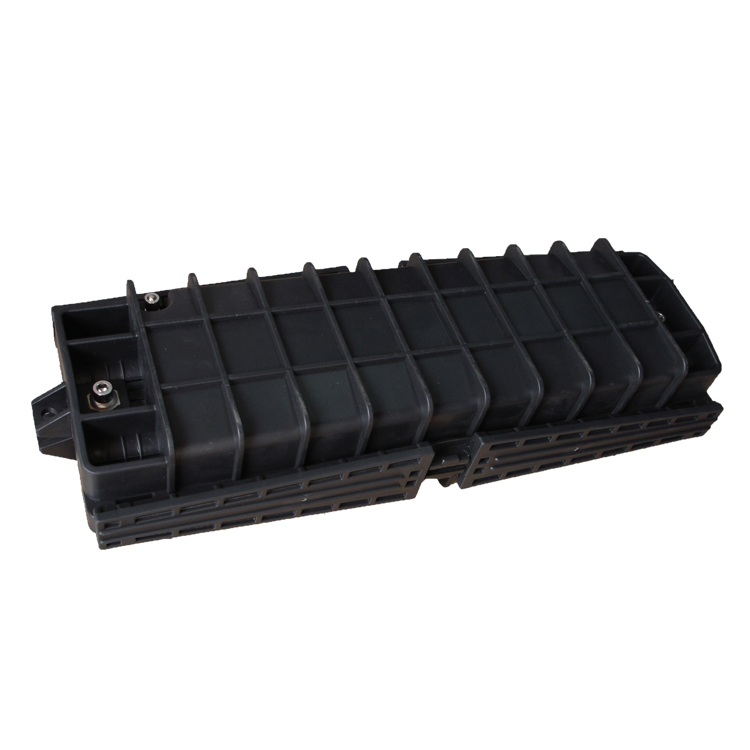

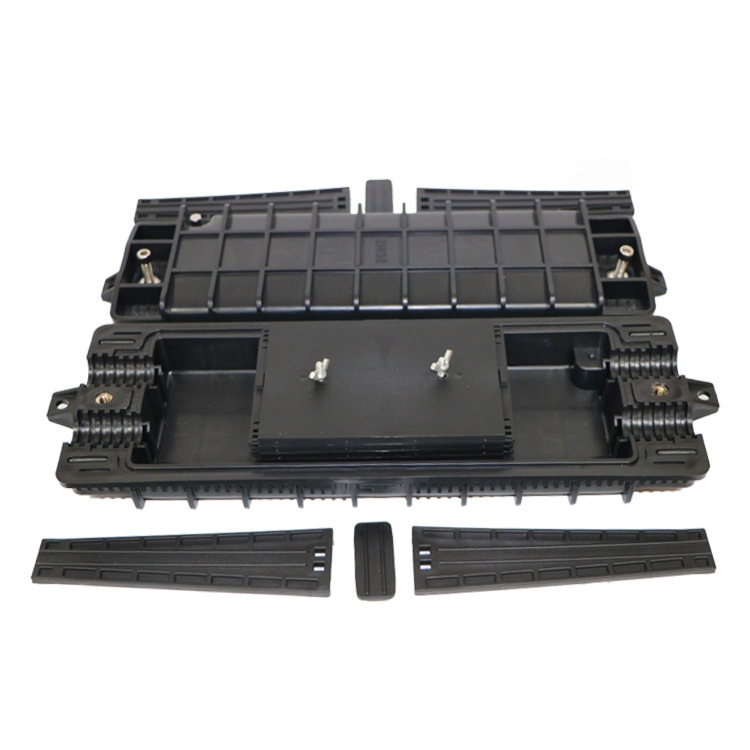

Fiber Optical Splice Closure
MODELNO.:LYILT002


Product Overview
LYILT002  Optic Fiber Splice Closures is another new member of FCL-L Series fiber optic splice case family. It can be used in outside plant, underground, aerial, pedestal and direct buried applications. The Fiber Optical Splice Closures inherit the good features of FCL-L Series fiber optic splice case family. At the same time, it decreases the manufacturing cost, which make the product more cost effective and guarantees high quality.

Product Specifications

Type	Appearance size L×W×H (mm)	Fibers/Tray (core)	Cable Capacity (port)	Splice capacity (fibers)	Suitable Diameter of cable (mm)	Weight/Unit (kg)
LYILT002	485×171×108	12	2 entry 2 exit	12-48	Φ10~Φ25	2.8-3.0

Product Features
Reasonable structure design and constructed of a high performance chemical-resistant raw material, PP
Reliable optical and resist electric performance
Innovative waterproof elastic entire sealing
Unique strength member clamp assembly
Several sizes with interchangeable parts
Multiple cable entry options • No special tools required  Varying cable port size

Product Benefits
Use in outside plant, underground, aerial, pedestal and direct buried applications
Prevents cable sheath movement with temperature changes
Expandable system to fit capacity and space requirements
No compound required; easy installation and reentry; easy reentry and reusable seal
Accommodates all common trunk, feeder cable sizes, and many types of splices
