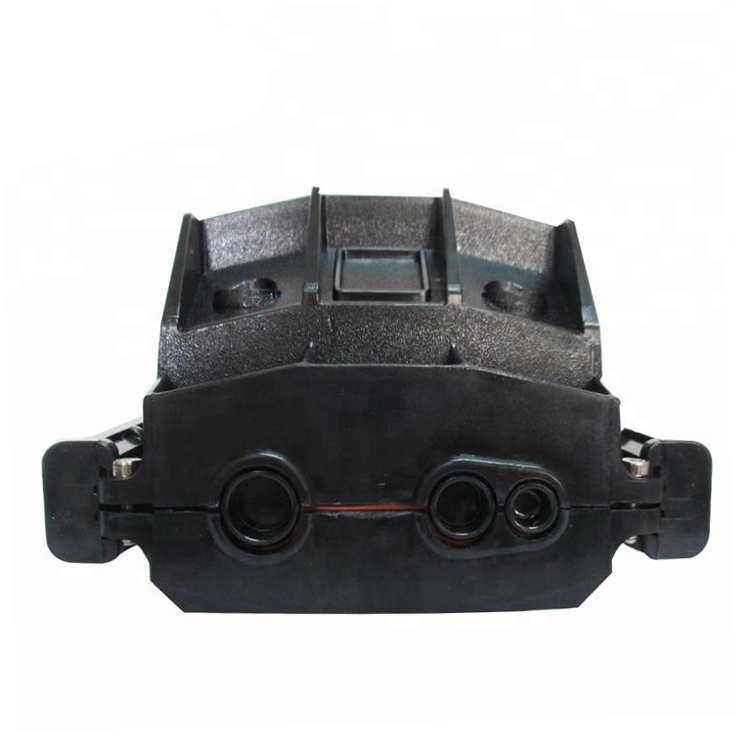

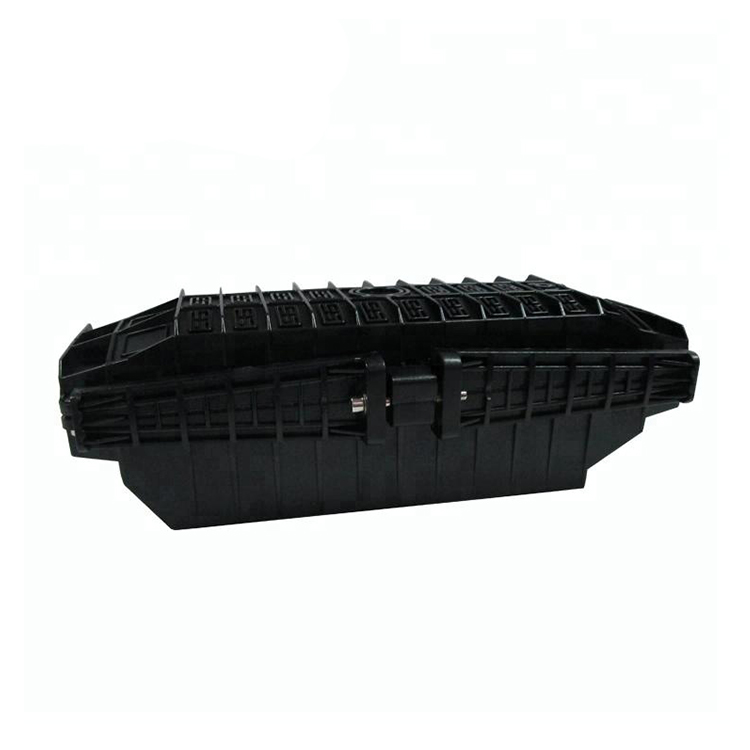

Fiber Optical Splice Closure
MODELNO:LYILT003


LYILT003 Optic Fiber Splice Closures can be used in outside plant, underground, aerial, pedestal and direct buried applications. The ambient temperature ranges from -40 to 65℃

Main Components

No.	Name of components	Quantity	Usage	Remarks
1	Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 378x136 (mm)
2	Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3	Fiber optic splice tray (FOST)	Max 8 pieces (bunchy) or 6pcs ( ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
4	Foundation	1 set	Fixing reinforced core of fiber cable and fiber optic splice tray (FOST)
5	Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6	Port plug	6 pieces	Sealing empty ports
7	Pressure testing valve	1 set	After injecting air it is used for pressure testing and sealing testing	Configuration as per requirement

Dimension and capacity

Outside dimension (LxWxH)	450x216x160 (mm)
Weight (excluding outside box)	3.5-4.2(kgs)
Number of inlet/outlet ports	3 (pieces) on each side (total 6 pieces)
Diameter of fiber cable	Φ8—Φ23 (mm)
Capacity of FOSC	Bunchy: 12—192 (Cores) Ribbon: max. 432 (Cores)
