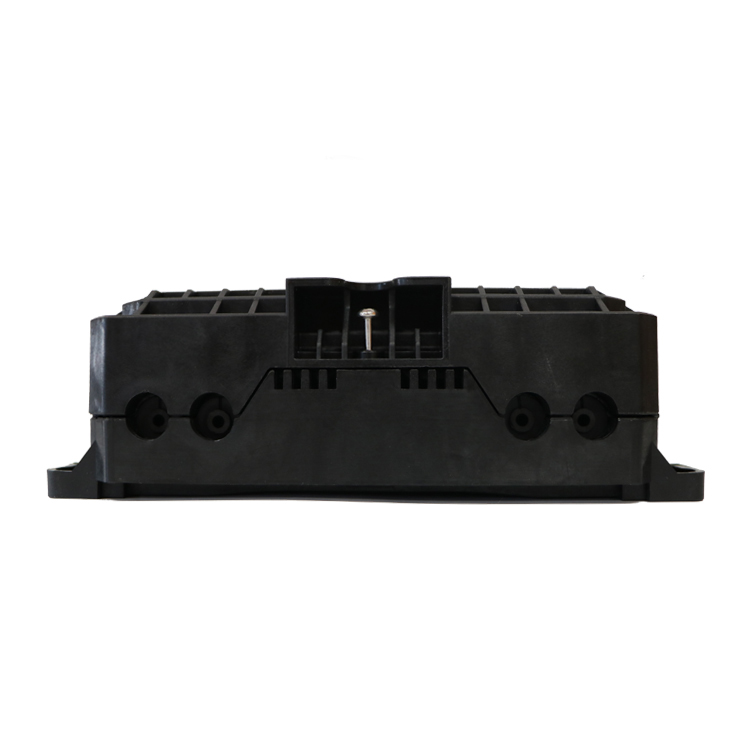

Fiber Optical Splice Closure
MODELNO.:LYILT005

Features
gel-sealing.easy to open and reenter.no tool or re-entry kit required
Seals up to 50cm under water with round drop cable(3mm)
IP67 for flg.8(2x3mm)drop cable pole or wall mounted application
Bending radius:25mm
Butt configuration
4 main cable ports(8-14mm)
8 drop cable ports(3mm or 2x3mm flg.8)
Options for both mechanical splices and heat shrinkable splices (SMOUV)
Housing up to 2 splitters，8 SC adapters，24fusion splices or 12 Mechanical splices
Loop strorage capacity;6m of 2mm OD loose tube

Product Specifications

Construction	Description
Capacity	8Fibers
Material	Plastic
Dimension W*H*D(mm)	266*237*76.5
Inlets/Outlets	4/8
Installation	Pole-mounting/Wall-mounted
Optional Accessories	Pigtail，Adapter
Protection Level	IP67
Input Cable Method	Cutting
PLC Splitter Available	Yes
Net Weight（g）	1280
PLC Splitter Type	Tube splitter

Packing Information

Construction	Description
Outside Dimension（L*M*H）mm	270*248*100
Weight/PC（kgs）	1.51
Carton size （L*W*H）cm	58*52*33
Qty/CTN（pcs）	12
Weight/CTN（kgs）	19.12
