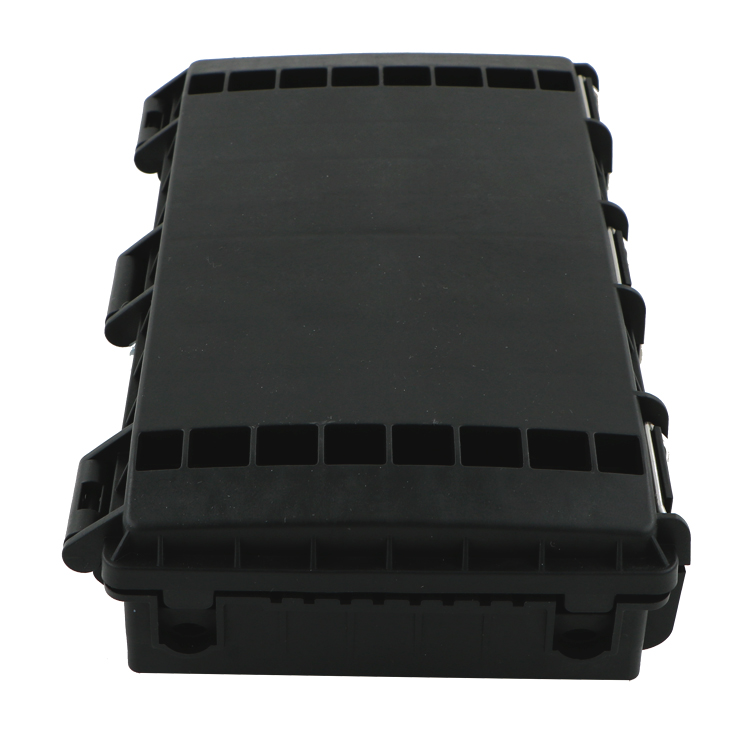

Fiber Optical Splice Closure
MODELNO.:LYILT007

Features
The pre that can be re-opened. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
Anti-ultraviolet,anti- impact and waterproof function;
Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable  crossing; Fiber optic cable can go in and out of the box without cut the cable.oduct is made of high-quality impact resistant plastic and has a standard user interfac

Technical parameters
Optical fiber radius of curvature: ≥40mm Splice tray additional loss: ≤0.1dB
Temperature range: -40°C ~ +60°C
Anti side pressure: ≥2000N/10cm Impact resistance: ≥20N.m Protection class: IP65
